PowerRide™ 30K 5th Wheel: Pro Strength Meets Intuitive Design

Need a Professional-Grade 5th Wheel Solution?

Very few 5th wheel hitches on the market today are rated for 30,000 lbs., and those that are can be difficult to install and a hassle to operate in your day-to-day work.

When your job demands the highest in towing power, you need a hitch that’s tested and rated to handle the workload. But why can’t a high-capacity 5th wheel hitch be as easy and ergonomic to operate as its lightweight counterparts?


Introducing PowerRide

PowerRide is a 30K 5th wheel hitch that offers exceptional towing capacity while being easy to install and operate. It was uniquely engineered to be the best of both worlds.

While other 30K 5th wheels can be clunky, awkward and downright ugly, PowerRide is intuitive, ergonomic and agile. Plus, its 30,000-lb. rating is fully tested to SAE J2638 specs for safety, giving you a dependable, professional-grade 5th wheel hitch solution.

PowerRide 30K 5th Wheel Hitch in Truck BedPowerRide 30K 5th Wheel Hitch in Truck Bed
CURT PowerRide 30K Award Winning 5th Wheel RV ProCURT PowerRide 30K Award Winning 5th Wheel RV Pro

Superior Performance from PowerRide

CURT PowerRide 5th Wheel FeaturesCURT PowerRide 5th Wheel Features

Streamlined 5th Wheel Installation

PowerRide 5th Wheel Hitch RailsPowerRide 5th Wheel Hitch Rails

No welding or fab

Unlike competitor options that require tedious welding and fabricating for installation, PowerRide conveniently mounts onto industry-standard 5th wheel rails (40K rails #16205 recommended). This also provides the option for removal and relocation of the hitch as needed.

PowerRide 5th Wheel Head RemovalPowerRide 5th Wheel Head Removal

One-pin head removal

To make moving the PowerRide faster and easier, the head attaches to the body using a single, solid pin. Once the pin is removed, the hitch easily breaks down into two smaller, lighter pieces. PowerRide also has strategic grip points for easy carrying.

PowerRide 30000 5th Wheel Trailer HitchPowerRide 30000 5th Wheel Trailer Hitch

4” height adjustment

PowerRide is highly adjustable to fully accommodate your unique truck bed. It offers 4” of height adjustment, making it much more versatile than 3” options. This allows for clearance of the truck bed wall, bed rails and other potential obstructions.

PowerRide 30K Heavy-Duty 5th Wheel HitchPowerRide 30K Heavy-Duty 5th Wheel Hitch

Stringently Tested to SAE J2638

A 5th wheel hitch is nothing without the proper strength to back it up. That is why PowerRide is stringently tested to SAE J2638 specifications for safety. We test to rigorous protocols so that you can hitch up and tow with confidence, wherever the job takes you.

PowerRide is tested and rated for 30,000 lbs. gross trailer weight and 7,500 lbs. vertical load.

Compatible with CURT 40K Base Rails

A 30K 5th wheel hitch requires a solid foundation and none is more solid than CURT 40K base rails #16205.

These industry-first rails are tested and rated for up to 40,000 lbs. gross trailer weight. They are constructed from 80,000-PSI alloy steel for superior strength, and they feature industry-standard mounting points to accept most 5th wheel hitches, including standard PowerRide legs.

CURT 30 5th Wheel Hitch InstallationCURT 30 5th Wheel Hitch Installation

Intuitive 5th Wheel Operation

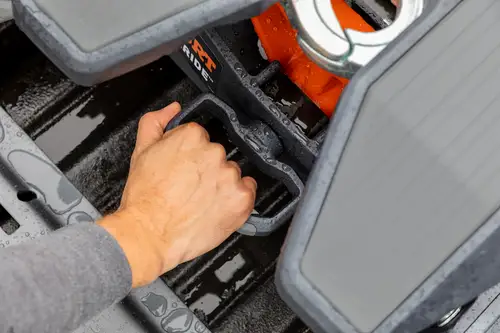

PowerRide 5th Wheel Operation HandlePowerRide 5th Wheel Operation Handle

Ergonomic, self-resetting handle

The PowerRide 30K 5th wheel makes coupling easier by eliminating an extra step from the process. The ergonomic handle self-resets to the ready-to-couple position after uncoupling, meaning you can hitch up to your trailer again without getting out of the truck cab.

CURT HD 5th Wheel Coupling IndicatorCURT HD 5th Wheel Coupling Indicator

Three-position coupling indicator

PowerRide is equipped with an integrated, color-coded coupling indicator that clearly shows the coupling status. It makes it easier to know if your hitch is ready to couple to the 5th wheel king pin, uncoupled from it, or if it’s ready to tow.

Power Ride 30K 5th Wheel Head TiltPower Ride 30K 5th Wheel Head Tilt

Multi-directional, cast yoke head

For a smooth ride while towing the largest of 5th wheel trailers, PowerRide features a high-strength, cast yoke to allow the head to tilt in multiple directions. This enables the connection to adapt to bumps and variations in the road while maintaining excellent stability.

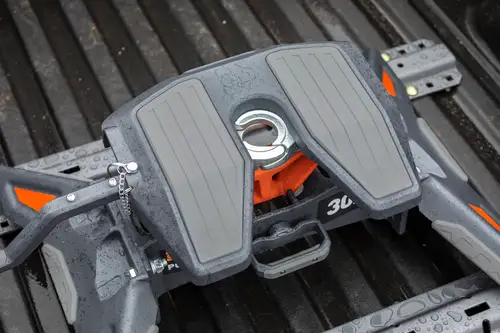

PowerRide 5th Wheel Wear PlatesPowerRide 5th Wheel Wear Plates

Integrated wear plates

To promote smooth, long-lasting performance of the PowerRide 5th wheel, the head features integrated wear plates on the surface. These poly plates act as a lubricating buffer between the hitch and king pin box, eliminating the need for messy grease.


FAQs

  1. Are the wear plates replaceable?
    Yes, the wear plates on top of the PowerRide hitch head can be replaced as needed with part #19269.
  2. Can PowerRide be mounted onto my existing 5th wheel rails?
    To support the 30K rating of PowerRide, we recommend installing CURT 40K base rails #16205. They have industry-standard mounting points and are compatible with the existing under-bed brackets.
