Universal Part
UPC: 612314047758

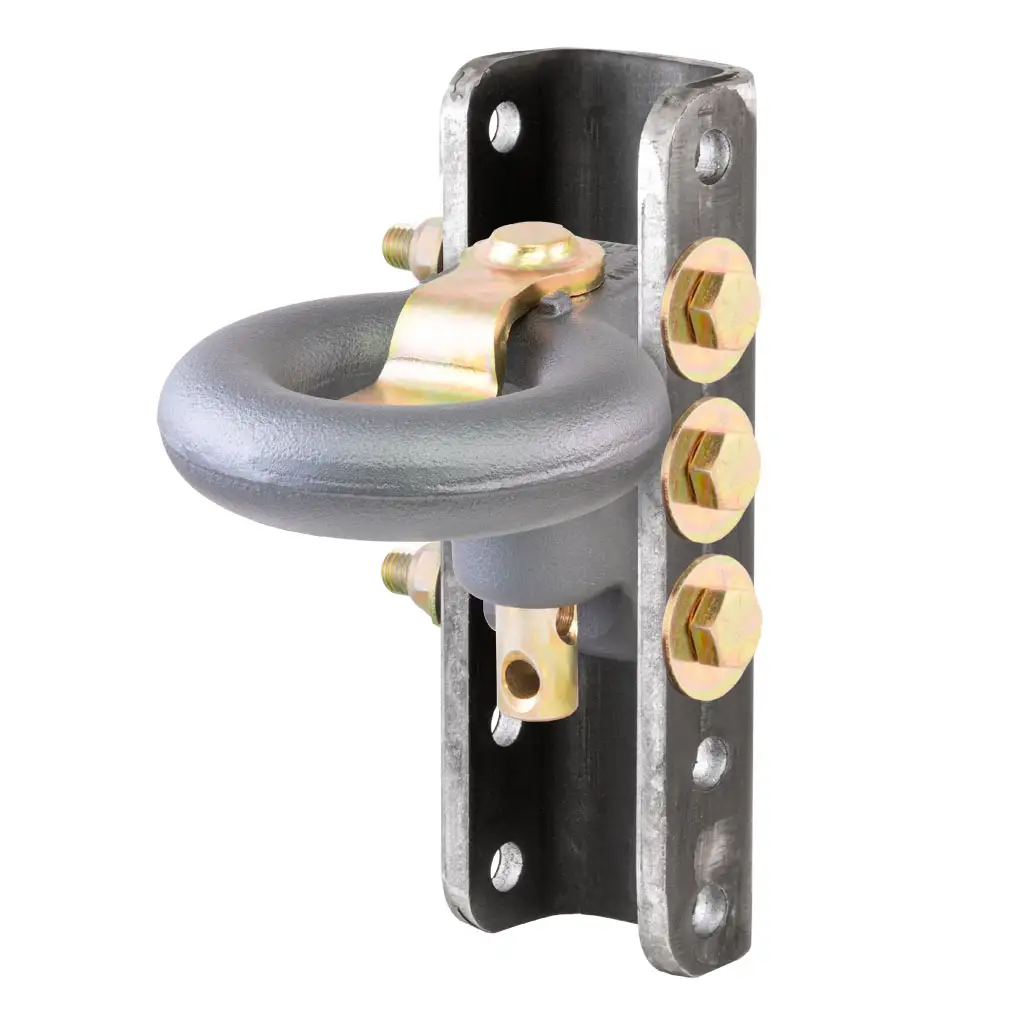

SecureLatch Lunette Ring & Channel (40,000 lbs, 3" ID, 11-3/4" Channel Height) #48641

Loading Price....
  • Drop-in pin accepts lock to deter theft (turns 90 degrees while coupled)
  • Flexible height adjustment for more drop or rise as needed
  • Heavy-duty 3-hole bolt pattern with 11-3/4" x 2-3/4" channel
  • Rated for 40,000 lbs. gross trailer weight
  • 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
  • Cast iron construction is austempered for superior strength and wear resistance
  • Textured, dark grey teridium powder coat for a premium finish
  • Bright gold zinc-plated pin for long-lasting corrosion resistance
  • Limited lifetime warranty (one-year finish, one-year parts)

Notes:

  • Includes lunette ring #48626, channel #48651 and hardware
  • Lunette ring fits 2-3/4" I.D. channel only
  • U.S. patent# 5,527,356; Canadian patent# 2,823,001; Australian patent# 2014305601

Guides & Install Sheets

Product Videos

  • Product Videos SecureLatchâ„¢ Auto-Locking Pintle Hitch | Innovative Features & Benefits

PRODUCT SPECIFICATIONS

  • FinishDARK GREY TERIDIUM
  • Gross Trailer Weight (GTW)40,000 LBS
  • Hub WarehouseD25
  • Master Case Qty1
  • MaterialCarbon Steel
  • Mount Type DescriptionNot Applicable
  • Pallet Qty0.000
  • Parcel AllowedYes
  • Part Type*
  • Product Weight26.000
  • Shipping Weight27.000
  • Side Application Type DescriptionNot Applicable
  • WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

The SecureLatch adjustable lunette ring is unique from other lunette rings because of its built-in locking pin. The locking pin drops into the ring base and helps prevent coupling and theft when your trailer is left unattended. The pin has holes in the bottom to accept a padlock or coupler lock. When it's time to hitch up, the pin can be repositioned to 90 degrees out of the way to allow the lunette ring to receive a pintle hook.

This SecureLatch lunette ring offers flexible height adjustment providing additional drop or rise as needed. This promotes level towing of your trailer with a variety of vehicles.

This lunette ring comes with a lunette ring channel that measures 11-3/4 inches high x 2-3/4-inch inside width. It also comes with mounting hardware, including three 5/8-11 grade-8 bolts, washers and lock nuts. The ring itself has a 3-inch inside diameter to fit pintle hooks, ball and pintle combos or a clevis hitch.

This SecureLatch adjustable lunette ring and channel set is tested and rated for 40,000 pounds gross trailer weight. It is constructed from cast iron that is austempered for superior strength and wear resistance. The ring is finished in a durable, dark grey teridium powder coat finish for lasting weather resistance.
