Universal Part
UPC: 612314047611

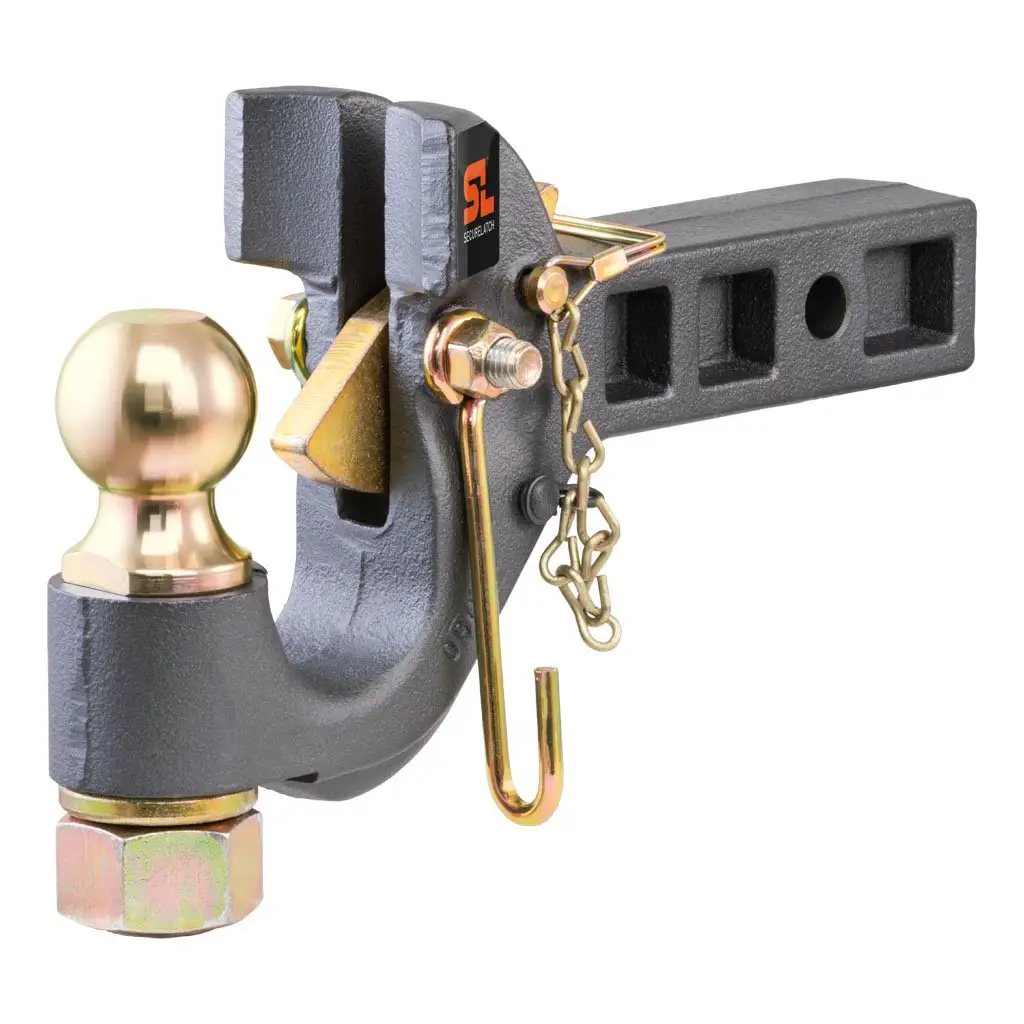

SecureLatch Receiver-Mount Ball & Pintle Hitch (2" Shank, 2" Ball, 14K) #48407

Loading Price....
  • Auto-locking system secures primary latch without manual coupling required
  • Cupped hook tightly holds lunette ring fore and aft to reduce chucking and noise
  • Built-in back plate helps position coupler or lunette ring for easier hookup
  • Integrated, intermediate safety chain hangers keep chains off the ground
  • Rated for 14,000 lbs. gross trailer weight and 10,000 lbs. ball capacity
  • Fits trailer hitches with a 2" x 2" receiver tube opening
  • Couples to 2" couplers or lunette rings with a 2-1/2" or 3" inside diameter
  • Latch can be pinned in open position to clear standard trailer coupler
  • Cast iron construction is austempered for superior strength and wear resistance
  • Textured, dark grey teridium powder coat for a premium finish
  • Bright gold zinc-plated hardware for long-lasting corrosion resistance
  • Limited lifetime warranty (one-year finish, one-year parts)

Notes:

  • Safety pin must be installed before towing
  • U.S. patent# 9,789,742; Canadian patent# 2,836,683, 3,040,259 and 3,044,875; Australian patent# 2014366795; European patent# 14871983.4

Guides & Install Sheets

Product Videos

  • Product Videos SecureLatchâ„¢ Auto-Locking Pintle Hitch | Innovative Features & Benefits

PRODUCT SPECIFICATIONS

  • Ball Capacity10,000 LBS
  • Ball Diameter2 IN
  • FinishDARK GREY TERIDIUM
  • Gross Trailer Weight (GTW)14,000 LBS
  • Hub WarehouseD25
  • Master Case Qty1
  • MaterialCarbon Steel
  • Mount Type DescriptionNot Applicable
  • Pallet Qty0.000
  • Parcel AllowedYes
  • Part Type*
  • Product Weight16.100
  • Receiver Tube Size2 IN
  • Shipping Weight16.100
  • Side Application Type DescriptionNot Applicable
  • WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SecureLatch makes coupling as easy as Strike. Drop. Auto-lock! Integrated into this SecureLatch pintle ball and hook combination is an automatic locking mechanism that secures the primary latch without any manual coupling required. Simply back your vehicle up to the lunette ring or coupler -- the built-in striker plate helps stop and center the lunette ring. Drop the ring down onto the ball and hook and let the auto-locking latch do the rest! Just install the secondary safety pin.

This SecureLatch pintle hitch is also unique from other pintle hooks with its cupped design. Instead of letting the ring slop with every acceleration, brake and bump, the cupped hook holds the ring tighter fore and aft. This results in smoother, quieter heavy-duty towing.

This SecureLatch ball and pintle combination is rated for 14,000 pounds gross trailer weight and 10,000 pounds ball capacity. It couples to a 2-inch coupler or a lunette ring with a 2-1/2-inch or 3-inch inside diameter. It fits into any industry-standard 2-inch receiver. It is constructed from cast iron that is austempered for superior strength and resistance to wear. To protect this hitch from the elements, it is covered in a durable, dark grey teridium powder coat finish.
