Universal Part
UPC: 612314051601

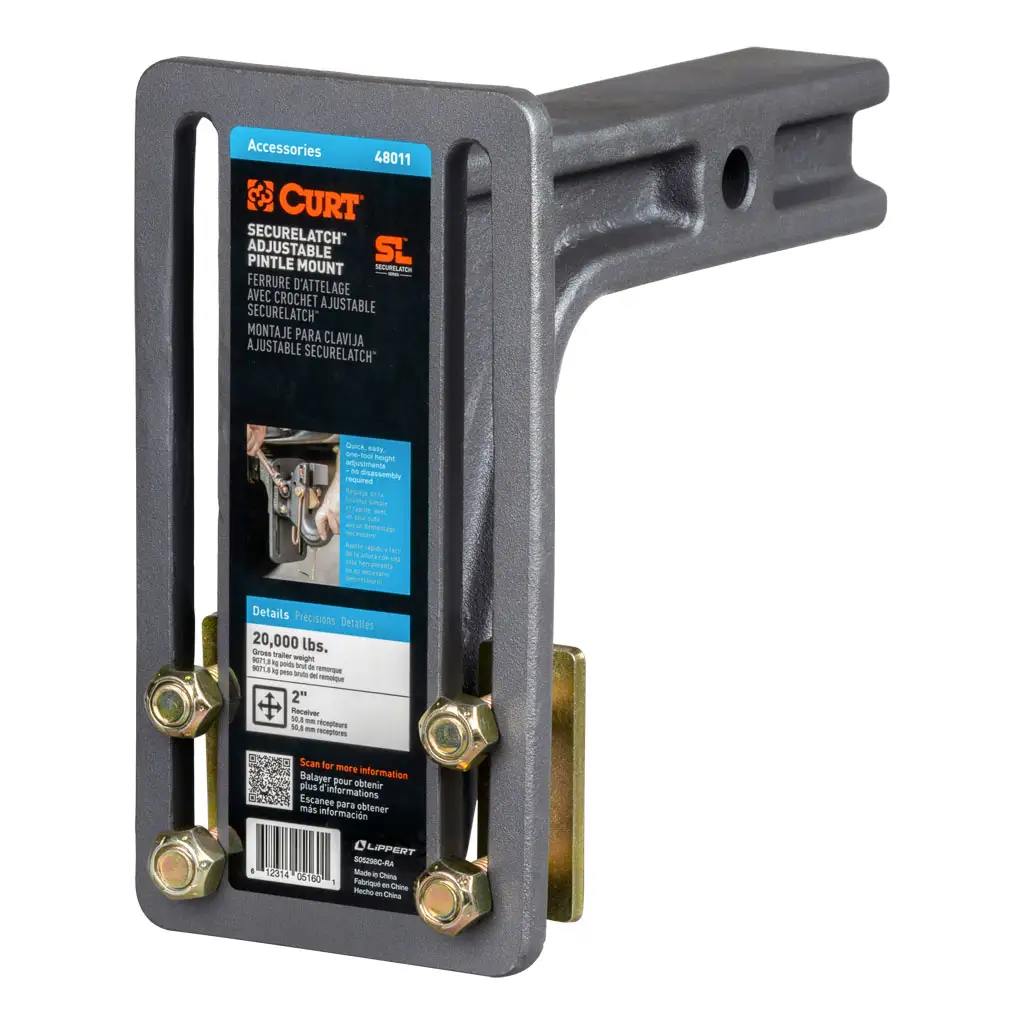

SecureLatch Adjustable Pintle Mount (2" Shank, 20,000 lbs.) #48011

Loading Price....
  • Slotted bolt plate provides max adjustability, instead of fixed height positions
  • Quick, easy, one-tool height adjustments -- no disassembly required
  • Torqued bolt plates provide 48,000 lbs. total clamp load for secure connection
  • Accepts SecureLatch pintle hooks and ball hitches (sold separately)
  • 9-1/2" high x 5" wide plate for versatile height adjustment
  • Tested and rated for 20,000 lbs. gross trailer weight
  • Fits trailer hitches with a 2" x 2" receiver tube opening
  • Cast steel construction for superior strength and wear resistance
  • Textured, dark grey teridium powder coat for a premium finish
  • Bright gold zinc-plated hardware for long-lasting corrosion resistance
  • Limited lifetime warranty (one-year finish, one-year parts)

Guides & Install Sheets

Product Videos

PRODUCT SPECIFICATIONS

  • FinishDARK GREY TERIDIUM
  • Gross Trailer Weight (GTW)20,000 LBS
  • Hub WarehouseD25
  • MaterialCAST STEEL
  • Mount Type DescriptionNot Applicable
  • Parcel AllowedYes
  • Part TypePintle Mount
  • Product Weight19.500
  • ShippingFreight Only
  • Shipping Weight20.000
  • Side Application Type DescriptionNot Applicable
  • WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

The SecureLatch™ pintle mount is unique from other pintle mounts because of its slotted design and double bolt plates. The mounting bolts fasten onto the pintle hitch and provide 48,000 pounds of clamp pressure when fully torqued. If you need to adjust the height, you only need one tool, and there's no disassembly required. Just loosen the nuts enough to allow the pintle hitch to slide up or down in the slotted channels. The slots also provide more precise levelling versus fixed height positions.

This pintle plate fits into any industry-standard 2-inch receiver hitch and offers versatile height adjustment for level towing. The plate measures 9-1/2 inches high and 5 inches wide (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). It is rated for up to 20,000 pounds gross trailer weight.

This SecureLatch™ pintle mount is constructed from cast steel for superior strength and resistance to wear. It also comes with a teridium powder coat finish to protect against the elements.
