Universal Part
UPC: 612314165506

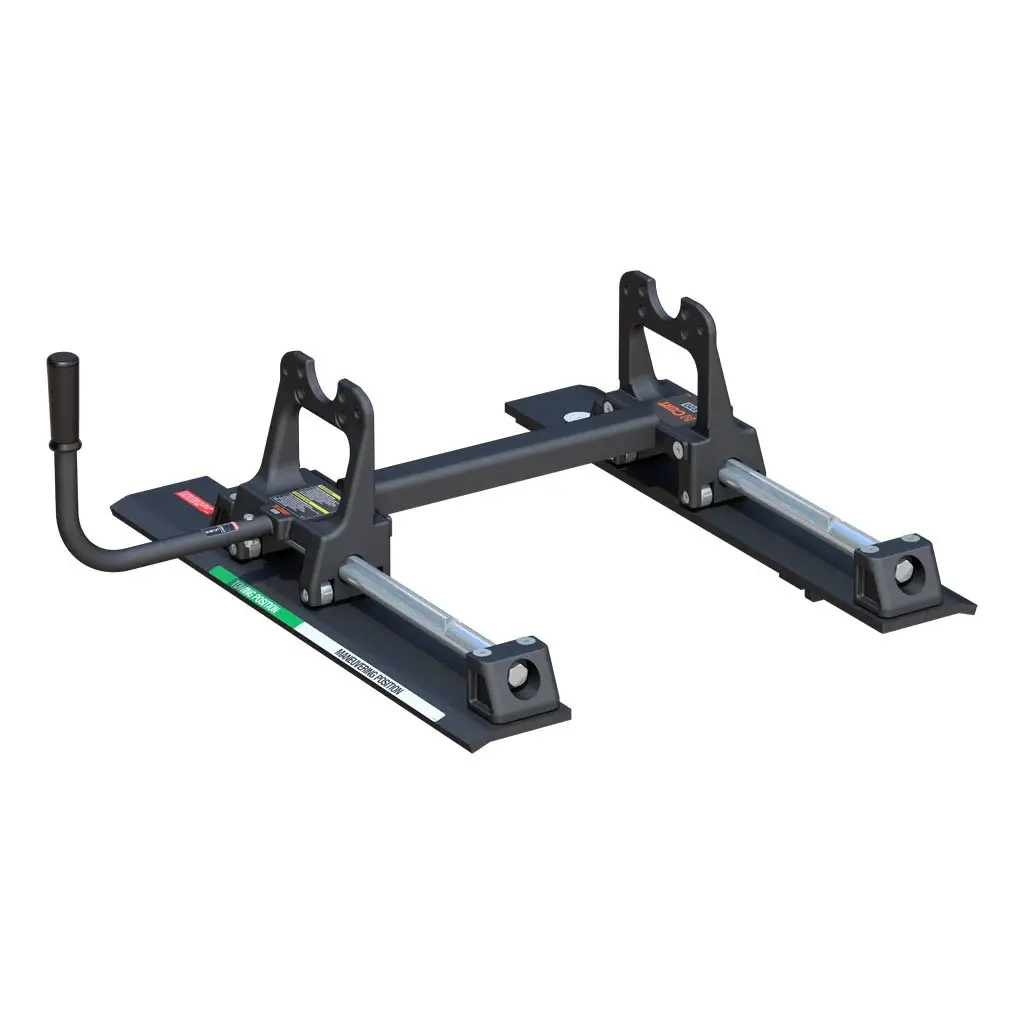

R20 5th Wheel Roller, 20,000 lbs. #16550

Loading Price....
  • For use with CURT A20 5th wheel hitch head #16540 or Q20 head #16530
  • Allows for forward and rearward movement of 5th wheel hitch for added clearance
  • Constructed with solid, non-binding rods that lock the hitch into position
  • Provides 12" of travel while most competitive models only offer 10"
  • Uses wheels to bear the weight, instead of hollow rods like competition
  • Mounts to all industry-standard base rails
  • Tested for safety in accordance with SAE J2638
  • Protected by a highly durable carbide powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)


  • Includes 5th wheel roller only
  • Capacity limited to lowest-rated towing component

Guides & Install Sheets

Product Videos

  • Product Videos 5th Wheel Roller Assembly: CURT 16550 R20 Roller Kit


  • HUB_USAD25
  • MaterialBlank
  • Part Type*
  • Shipping Weight139.500
  • Installation Time Exact0
  • Capacity20,000 LB
  • WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)

A CURT 5th wheel trailer hitch is the ultimate combination of towing power and smooth driving, but a CURT 5th wheel mounted on a 5th wheel roller turns this gentle giant into the ultimate in mobility too. If you have a short-bed truck, it can be difficult towing a large RV trailer, especially one with an extended front overhang. When you are towing a 5th wheel with a 6-foot truck bed, give yourself a little breathing room with a CURT 5th wheel roller. Our 5th wheel rollers mount easily onto a set of 5th wheel rails or a gooseneck adapter already installed in the bed of your pickup truck.

CURT 5th wheel rollers feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel rollers are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply moving on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn.

This 20K 5th wheel roller comes with a durable carbide powder coat to ensure the best possibly protection against scratching, chipping, rusting and UV damage. It has a towing capacity of 20,000 lbs. and is compatible with select CURT 5th wheel hitches and some competitive 5th wheel hitches. To give you peace of mind on the road, this roller also comes with a limited lifetime warranty.

Write Your Own Review
You're reviewing:R20 5th Wheel Roller, 20,000 lbs.
Your Rating

1 Item

Show per page
  1. 60%


    Q20 5th wheel hitch

    I have the Q20 slider hitch in my 2014 Toyota Tundra. The hitch is well built and when hooked up it has taken a lot of the noise out of towing compared to the other brand that I had before. The problem that I have is that when I go into the maneuvering position my pin box on the trailer hits my tailgate and has caused damage to the tailgate. I contacted Curt about this and the person I talked to told me I need to get rid of my tailgate and install a 5th wheel tailgate. Not what I wanted to hear. My other hitch do not give any problems and now wish I had stayed with it. The tech told me it is because this hitch (Curt) has 2" more rear travel but it is for a 6 1/2 foot bed. I like the hitch but do not like the problems.
