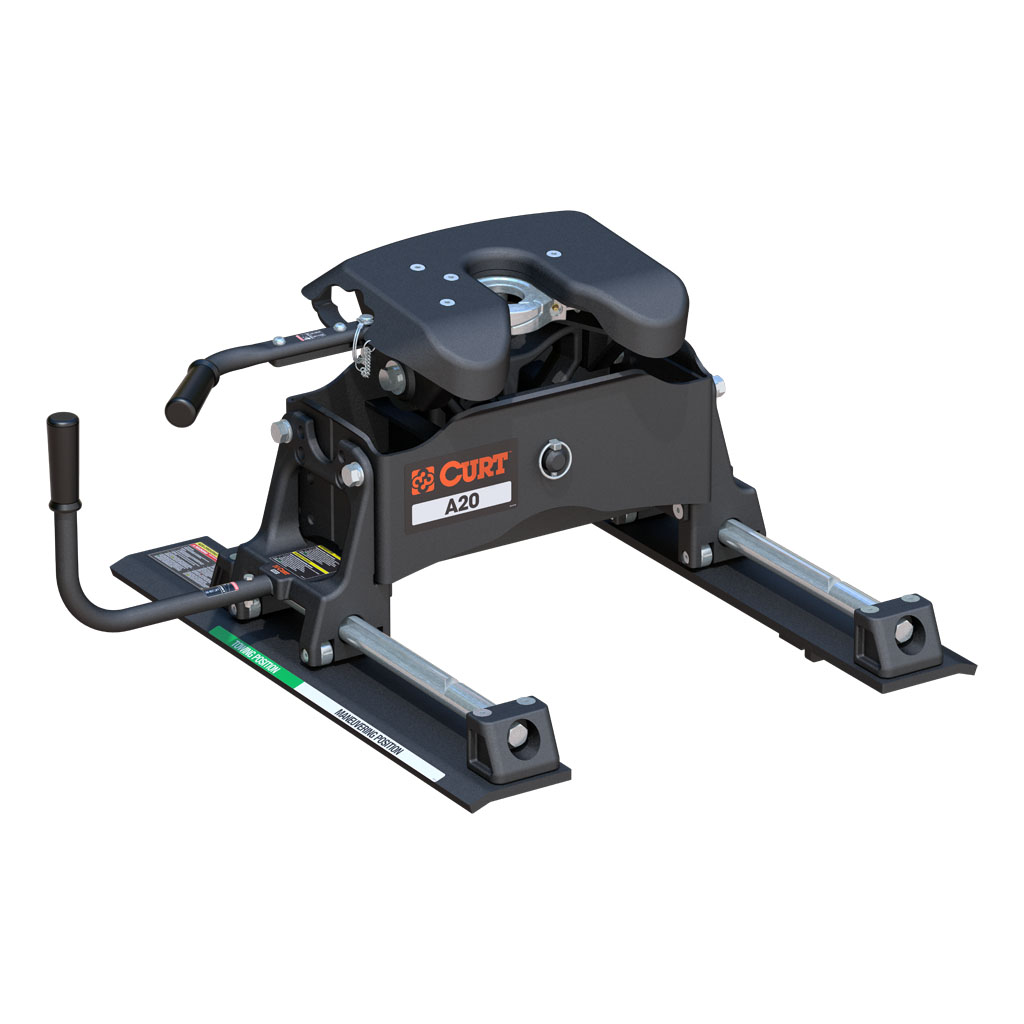

A20 Sliding 5th Wheel Hitch, 20,000 lbs. #16541
- Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
- Fully articulating torsion head for controlled coupling and stable towing
- Lockable handle self-resets to the ready-to-couple position after uncoupling
- High-strength, interlocking jaws fully wrap the kingpin to minimize noise
- Extra wide head opening for easier coupling
- Fast, one-pin head removal makes moving easy with smaller, lighter pieces
- Three-position coupling indicator clearly shows coupling status
- R20 5th wheel slider #16550 provides 12" of travel in the truck bed
- Rolls on wheels and solid, non-binding rods to be a true rolling unit
- Mounts to all industry-standard base rails
- Compatible with kingpin extension boxes, including common pivoting pin boxes
- Offers three height adjustment positions to adapt to each unique truck bed
- Includes a polyethylene lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Notes:
- Includes A20 5th wheel hitch head #16540, R20 slider #16550 and hardware (patent# 8,827,298)
- Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.
- Capacity limited to lowest-rated towing component
Guides & Install Sheets
Product Videos
-
CURT 5th Wheels Introduction -
CURT A20 5th Wheel -
How to Hook Up a 5th Wheel Hitch -
How to Measure Truck Bed for 5th Wheel & Gooseneck Clearance
PRODUCT SPECIFICATIONS
- FinishCARBIDE BLACK POWDER COAT
- Gross Trailer Weight (GTW)20,000 LB
- Head SeriesA-Series
- Height17-1/2 IN - 21-1/2 IN
Hub Warehouse D25- MaterialBlank
- Parcel AllowedNo
- Part Type5th Wheel Hitch
- ShippingFreight Only
- Shipping Weight198.100
- Superceded by Item16531
- Vertical Load5,000 LB
- WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)
The CURT A20™ 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series™, an easier mounting system and the power of a 20K 5th wheel hitch.
Like our A16™ hitch, this 20K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed.
This A20™ 5th wheel hitch head comes with the CURT R20™ slider to be mounted in a short-bed truck using 5th wheel base rails and a bracket kit (base rails and brackets sold separately). CURT 5th wheel sliders feature solid construction and offer a sturdy mounting place for your 5th wheel hitch, ensuring that none of its towing strength is lost. CURT 5th wheel sliders are also true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT sliders also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your 5th wheel trailer around any turn.
Once installed, the A20™ is fast and simple to operate. It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that is visible from the truck cab.
To protect the A20™ 5th wheel hitch against rust and wear, it comes with a black carbide powder coat finish and a limited lifetime warranty. We also test the A20™ for safety in accordance with SAE J2638 to ensure reliability for the road ahead.
-
I got this A20 for my 2018 ram, puck system, slider. I installed it myself in an hour and half. Super quiet when towing. I had two issues since it was my first time with a 5th wheel so I called Curt and spoke to someone each time who got me through my issues. Great quality and support.
-
Used this equipment combination for the first time and found it to work extremely well with a 2014 3500 DWR Ram Mega Cab and a 38 ft. Cedar Creek 5th wheel. The A20 operated very smoothly and quiet. I did find the R20 handle difficult to pull out and engage. Moving the rigs location did help with the problem but still found it hard to move it even when not connected to the fifth wheel trailer. Hoping that lubricant and use will loosen it up.
