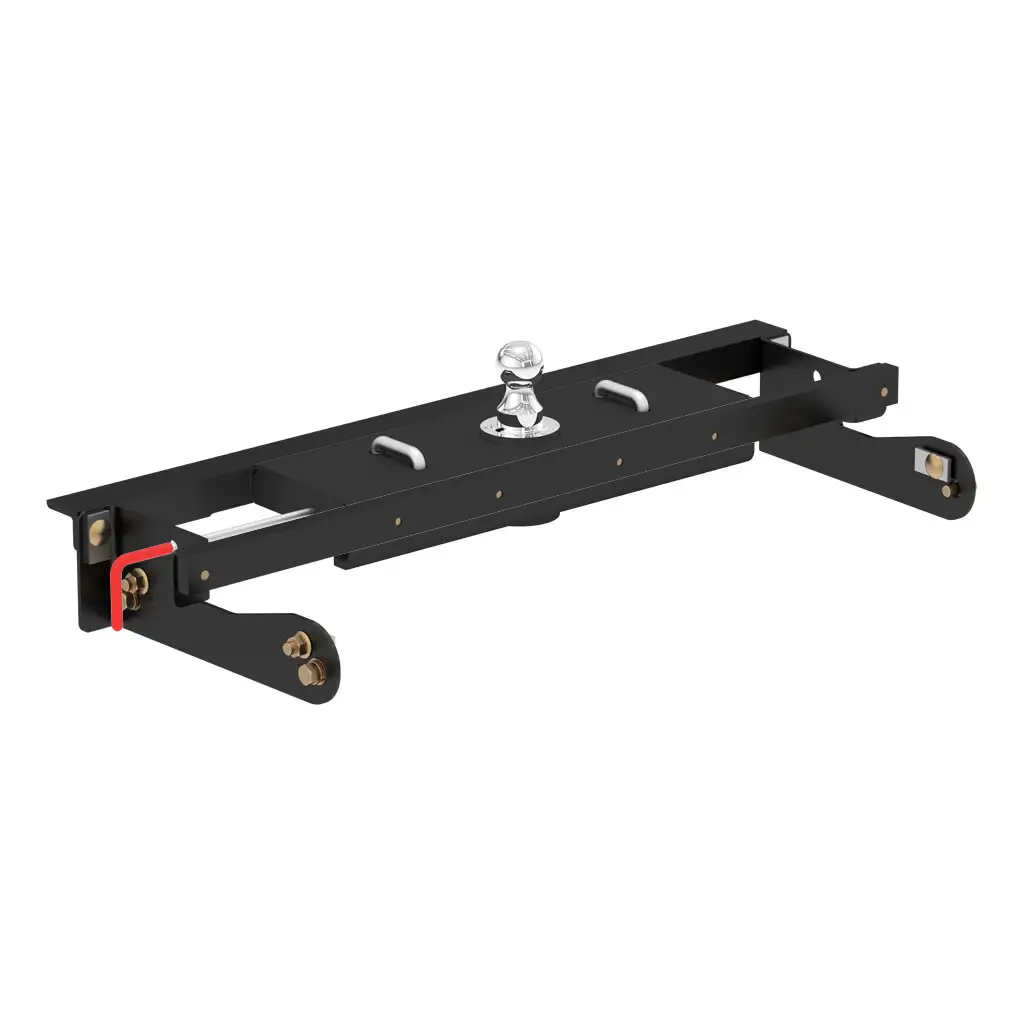

CURT Double Lock EZr Gooseneck Hitch #60611

UPC: 612314606115

No Reviews
Write a Review
Where To Buy

MSRP $277.45

  • One-person installation requires no welding or truck bed removal
  • Center locator eliminates the need to measure where the ball hole should be
  • Double locking pins for superior trailer and trailer ball security
  • Flip-and-store ball keeps truck bed free of obstructions
  • Removable chrome-plated 2 5/16" trailer ball fits most gooseneck trailers
  • Chrome-plated trim ring provides a finished look
  • Rubber hole cover helps prevent corrosion in trailer ball hole
  • Heavy-duty 3/8" diameter handle for solid operation
  • Includes strong 5/8" safety chain loops and grade 8 hardware
  • Protected by a highly durable carbide powder coat finish
  • Tested for safety in accordance with SAE J2638
  • Backed by a limited lifetime warranty

Notes:

  • Requires under-bed gooseneck installation brackets
  • Center Locator patent# D685,299 S
  • Capacity limited to lowest-rated towing component
Primary Video
Installation
Instruction Sheet Download pdf
Installation Video
Details
UPC 612314606115
Product Type Description Double Lock EZr Gooseneck Hitch
Shipping Weight 51.300
Product Weight 49.000
Drilling Required Yes
Gross Trailer Weight(GTW) 30,000 LB
Tongue Weight(TW) 7,500 LB
Ball Diameter 2.3125
Ball Hole 4 IN
Finish Carbide Black Powder Coat
Warranty Limited Lifetime

Additional Information

A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be. Gooseneck hitches are stronger, tougher and more subtle than any other, and when quality craftsmanship and intelligent design become the fuel that drives a gooseneck hitch, you get a towing solution that leaves others lost for words.

The CURT under-bed Double Lock EZr™ gooseneck hitch is strong, fast and easy to operate. It gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers. The Double Lock EZr™ mounts underneath your truck bed with compatible gooseneck installation brackets and provides a removable 2 5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs. and a tongue weight capacity of 7,500 lbs. Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed.

For easy one-person installation, the Double Lock EZr™ comes with the CURT-exclusive center locator. This simple installation tool inserts into the gooseneck trailer ball hole during installation and shows exactly where to drill in the truck bed, eliminating errors and the need for meticulous measuring. The Double Lock EZr™ also comes with solid safety chain hookups, an attractive chrome trim ring, a durable carbide powder coat finish and a limited lifetime warranty.This particular Double Lock EZr™ gooseneck hitch is design to be a custom fit for certain years of the Chevrolet Silverado 2500 or 3500 or GMC Sierra 2500 or 3500 (for a complete listing of vehicle and installation bracket compatibility, see the CURT application guide or visit curtmfg.com).
