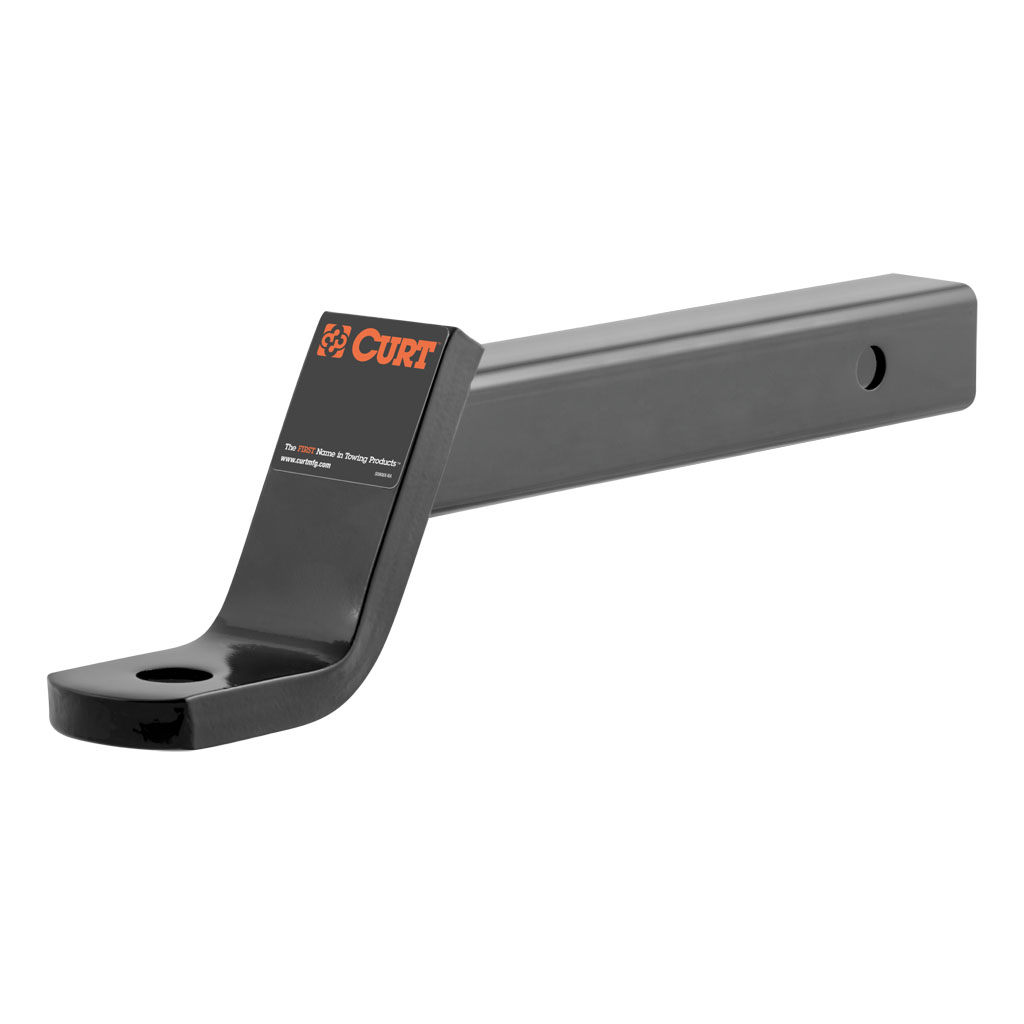

CURT Class 3 Ball Mount #45270

Receiver Tube Size: 2 UPC: 612314427000

Where To Buy

MSRP $33.65

  • Fits trailer hitches with a 2" x 2" receiver tube opening
  • Equipped with a 1" hole to accept a trailer ball shank
  • 2" rise or 4" drop for precise trailer leveling
  • Hollow shank weighs less and can be used with an anti-rattle kit
  • CNC-formed, robotically welded and mechanically descaled for a perfect fit
  • Protected by a durable powder coat finish
  • Made in USA
Primary Video
Warranty Limited Lifetime
Shipping Weight 10.000
UPC 612314427000
Mount Type Description Blank
Side Application Type Description Blank
Part Type Class 3 Ball Mount
Gross Trailer Weight(GTW) 7,500 LB
Tongue Weight(TW) 750 LB
Drop 4 IN
Rise 2 IN
Receiver Tube Size 2
Length 13 IN
Ball Hole 1 IN
Finish Gloss Black Powder Coat

Additional Information

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).

This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 13", a drop of 4" and a possible rise of 2". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.


Submit Your Review

  • Cancel
Write a Review

Ball Mount 45270

This is generally an excellent ball mount,me specially if you need or want one that will place the ball farther back than most. The one drawback, and it is a minor one, is that the "drop" measurement listed is slightly optimistic. The two that I have measure out at closer to 3-1/2 inches of drop, rather than 4 inches. This is a very minor point, and may be related to different measurement techniques. Otherwise - excellent ball mount that is well-made and has a very useful weight rating.
