Universal Part
UPC: 612314006595

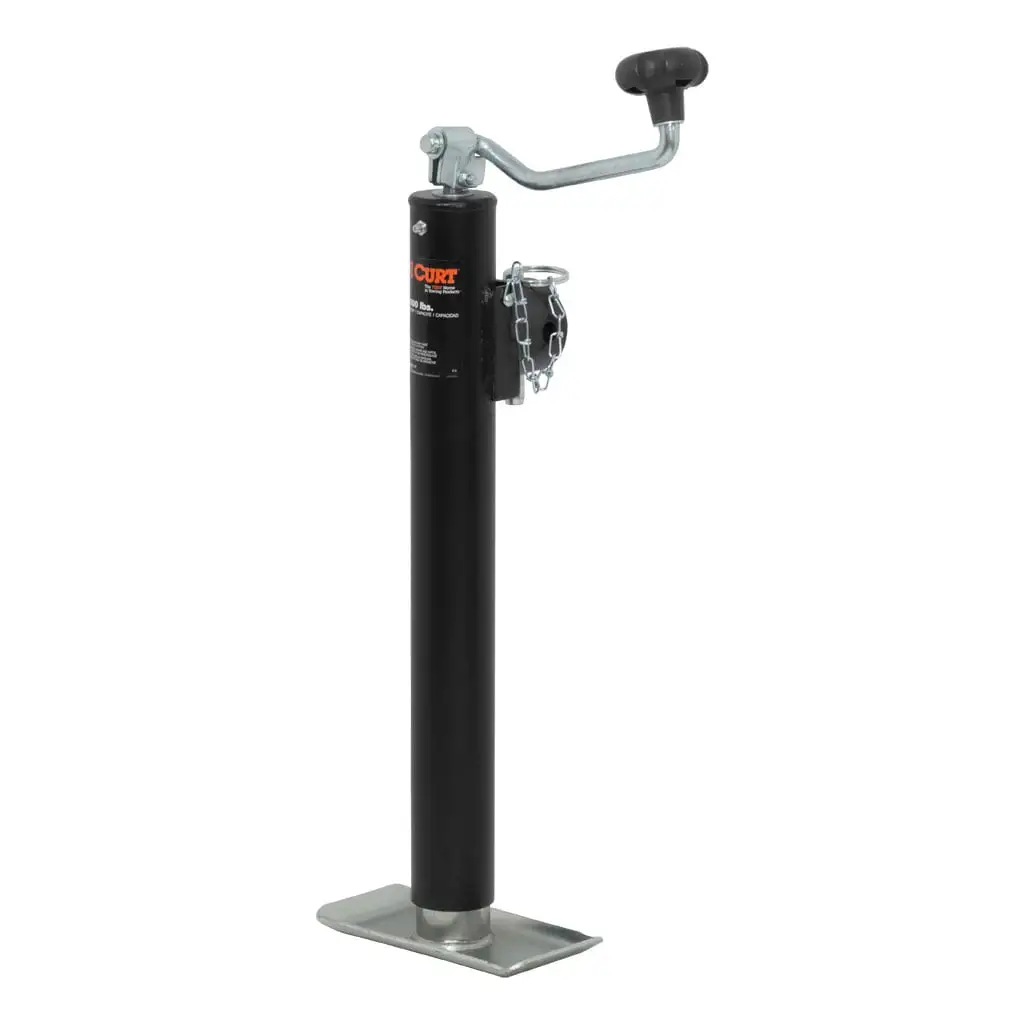

Pipe-Mount Swivel Jack with Top Handle (2,000 lbs, 15" Travel) #28322

Loading Price....
  • Rated for 3,000 lbs. support capacity and 2,000 lbs. lift capacity
  • Top-wind claw handle easily raises or lowers trailer coupler
  • Weld-on pipe-mount accepts a 9/16" pull-pin
  • Swivel bracket allows jack to fully swing up and out of the way for travel
  • Pull-pin keeps jack securely locked in place
  • 15" of vertical travel accommodate multiple ball heights
  • Limited lifetime warranty (one-year finish, one-year parts)

Notes:

  • Use replacement handle bulk #28937

Guides & Install Sheets

Product Videos

  • Product Videos CURT Trailer Parts & Accessories Introduction

PRODUCT SPECIFICATIONS

  • FinishCARBIDE BLACK POWDER COAT
  • Handle ColorRed claw
  • Hole Size.5625
  • Hub WarehouseD01
  • Lift Capacity2,000 LBS
  • MaterialBlank
  • Parcel AllowedYes
  • Part TypePipe-Mount Swivel Jack
  • ShippingFreight Only
  • Shipping Weight13.900
  • Support Capacity3,000 LBS
  • Travel15
  • WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

In our goal of being your best source for all things towing, the CURT line of trailer jacks is designed with care and manufactured with pride. CURT jacks are made with quality to promote the life and function of your trailer, and they come in several different styles to accommodate your needs, whether you are a frequenter of the boat landing, the campground, the racetrack or the field.

CURT swivel jacks get their name from the pull-pin swivel feature that allows the jack to pivot on its mounting bracket and swing up and out of the way for travel. Our swivel trailer jacks are broken into two categories: pipe mount and bracket mount.

This CURT pipe mount swivel jack features a support capacity of 3,000 lbs., a lift capacity of 2,000 lbs. and a travel of 15". With a jack foot plate welded on the bottom, this type of jack also provides added stability for your trailer on rough terrain. It comes with a top-wind handle and includes a weldable pipe with a 9/16" hole for secure mounting. It does not matter what kind of trailer you tow -- a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer -- if you have a receiver-style trailer, you will want a jack that complements its function. For a trailer jack that will not steer you wrong, CURT has the answer.
