Universal Part
UPC: 612314252275

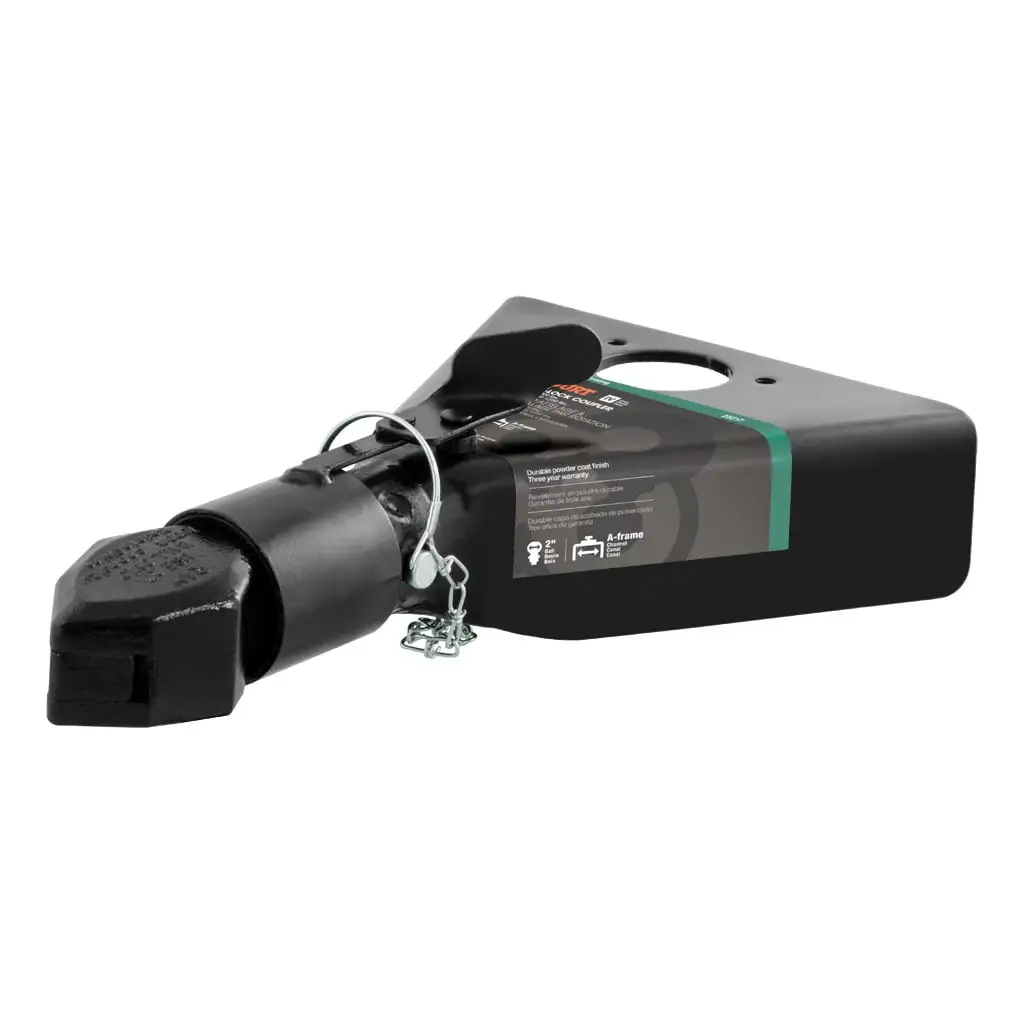

2-5/16" A-Frame Coupler with Sleeve-Lock (12,500 lbs, Black) #25227

Loading Price....
  • Fits A-frame trailer tongues and 2-5/16" trailer balls
  • Passes SAE-684 performance testing as a class 4 coupler
  • Solid neck for increased strength and greater corrosion resistance
  • Sleeve-lock latch system with included safety pin for optimum security
  • Safety pin hole can also accept a coupler lock
  • Constructed from high-strength steel
  • Protected by a durable carbide black powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)

Guides & Install Sheets

Product Videos

  • Product Videos CURT Trailer Parts & Accessories Introduction

PRODUCT SPECIFICATIONS

  • Ball Diameter2-5/16 IN
  • FinishCARBIDE BLACK POWDER COAT
  • Gross Trailer Weight (GTW)12,500 LB
  • Hub WarehouseD01
  • Latch StyleSleeve-lock
  • MaterialBlank
  • Parcel AllowedYes
  • Part TypeA-Frame Coupler
  • Product Weight16.210
  • ShippingFreight Only
  • Shipping Weight16.210
  • Tongue Weight (TW)1,875 LB
  • WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

If you are replacing a broken coupler on your trailer or installing a new one on a trailer you are building, CURT has dependable couplers you can trust to keep your tow load latched on tight. Selecting the right trailer hitch, ball mount and trailer ball to manage the weight of your trailer is not the only important aspect of towing; you also need a trailer that can stand up to the road ahead. That means equipping it with a coupler that is built to go the distance.

As the name indicates, CURT A-frame couplers are meant to mount onto trailers with an A-shaped tongue. They are stronger than straight-tongue couplers and are especially common on RV trailers. This particular A-frame coupler features a sleeve-lock latch and a solid neck for increased strength and security. It is made from hardy steel construction and has a durable carbide black finish to protect from corrosion, wear and tear.

This CURT A-frame sleeve-lock coupler features a gross trailer weight capacity of 12,500 lbs. and a tongue weight capacity of 1,875 lbs. It fits a 2-5/16" diameter trailer ball. All CURT couplers include a limited lifetime warranty and feature a lockable latch to give you peace of mind.
