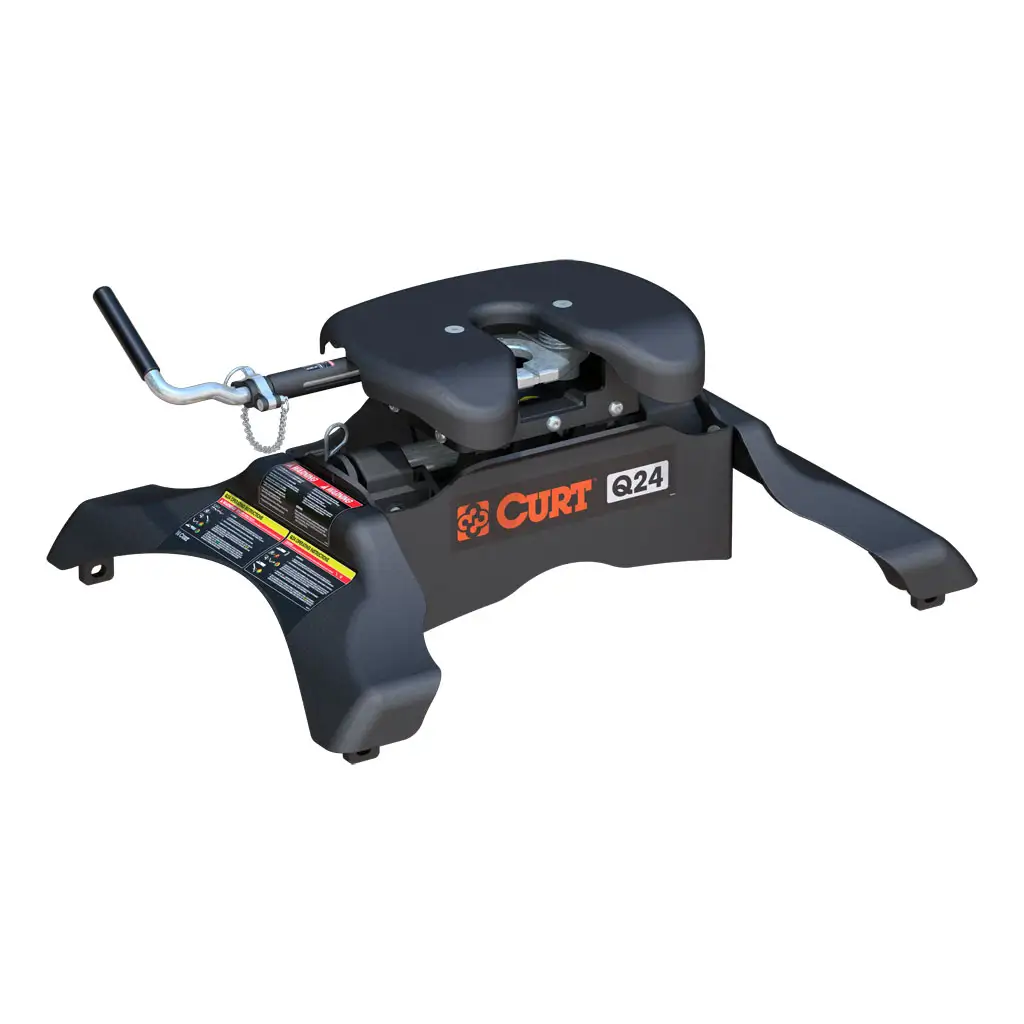

Q24 5th Wheel Hitch #16245
- Spherical axial bearing tilts head in any direction for a smooth, quiet ride
- Dual jaws fully wrap the kingpin to reduce chucking and increase security
- Wide, self-aligning head helps eliminate errors when backing up to the trailer
- Lockable, short-throw handle automatically engages with the kingpin
- Three easy-access grease fittings for lubrication
- Three-position coupling indicator clearly shows coupling status
- Mounts to all industry-standard base rails
- Offers three height adjustment positions to adapt to each unique truck bed
- Includes a polyethylene lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Notes:
- Includes 5th wheel head, legs and hardware
- Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.
- Capacity limited to lowest-rated towing component; not compatible with articulating or turret-style pin boxes, such as Rota-Flex and Sidewinder
Guides & Install Sheets
Product Videos
-
5th Wheel Hitch Install: CURT 16245 Q24 5th Wheel Hitch -
CURT 5th Wheels Introduction -
CURT Q20 and Q24 5th Wheel Hitches -
CURT RAM Roller Adapter -
How to Hook Up a 5th Wheel Hitch -
How to Measure Truck Bed for 5th Wheel & Gooseneck Clearance
PRODUCT SPECIFICATIONS
- FinishCARBIDE BLACK POWDER COAT
- Gross Trailer Weight (GTW)24,000 LB
- Head SeriesQ-Series
- Height13 IN - 17 IN
Hub Warehouse D25- MaterialBlank
- Part Type*
- ShippingFreight Only
- Shipping Weight136.000
- Vertical Load6,000 LB
- WarrantyLimited Lifetime Warranty (One-Year Finish, One-Year Parts)
The CURT Q24™ is the heavyweight champion of 5th wheel hitches. With a gross trailer weight capacity of 24,000 lbs. and a vertical load limit of 6,000 lbs., the Q24™ is capable of handling the heaviest of 5th wheel trailers, including deluxe RV and oversize campers. Something that sets the Q24™ 5th wheel hitch apart from competitive models is its spherical axial bearing. Instead of having a set of rods on which the hitch head can pivot, the Q24™ uses a spherical bearing to allow the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The CURT Q24™ 5th wheel trailer hitch also features dual-locking jaws, a self-aligning head, single-handle operation and a three-position coupling indicator. It comes with a durable carbide powder coat finish, a limited lifetime warranty and is tested in accordance with SAE J2638 for safety. This 24K 5th wheel hitch comes with a set of standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately).
Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards. Please contact CURT Product Support for compatibility information.
